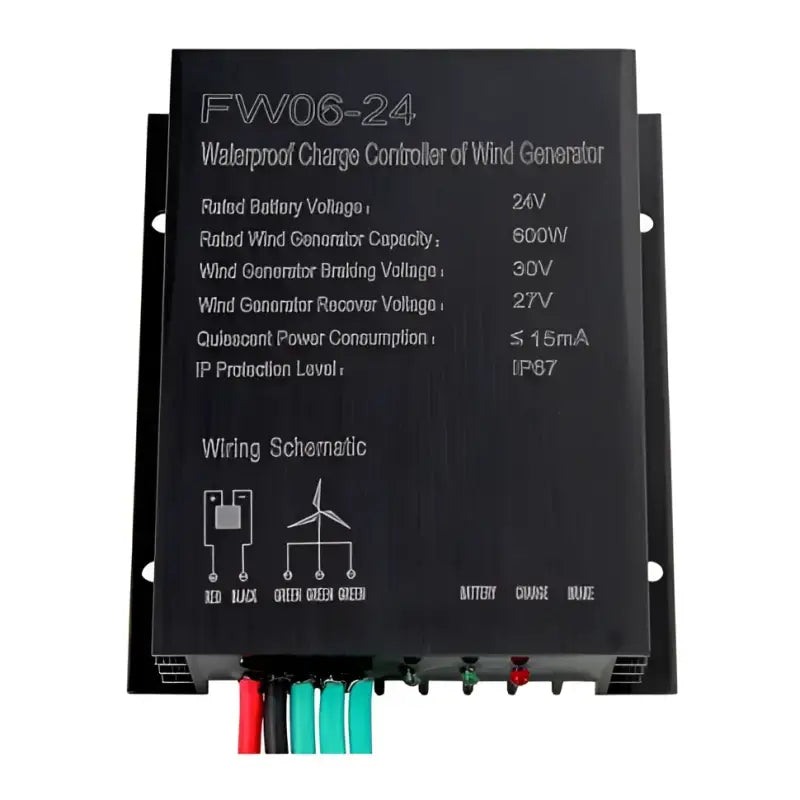

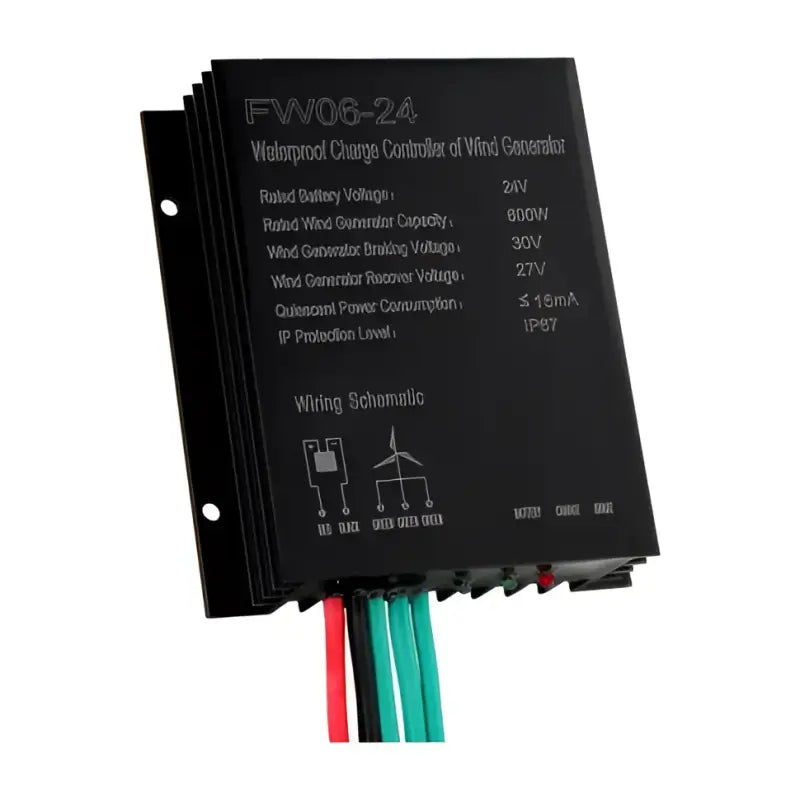

600W 24V Waterproof Wind Charge Controller / Regulator for 24V Wind Turbines up to 600W

600W 24V Waterproof Wind Charge Controller / Regulator for 24V Wind Turbines up to 600W

Regular price £38.99 GBP
Regular price £39.99 GBP Sale price £38.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

This waterproof 600W 24V wind charge controller is designed to charge lead acid batteries using energy generated from wind turbines. The controller seamlessly converts AC three-phase output from a wind generator into DC output, ready for charging a 24V battery bank.

This wind controller is equipped with advanced dual safety protection, designed to protect both the battery and the wind turbine itself. This is achieved through the intelligent automatic braking function - applied to the turbine when the battery is full, to protect the battery from overcharging. Automatic braking also helps to prevent damage to the wind turbine when high wind speeds are detected.

The fully waterproof casing (IP67 rated) ensures that this wind controller is suitable for outdoor mounting. The unit also features LED indicators to show the current mode, system connection status and rotation speed of the wind generator.

This wind controller is compatible with 24V wind turbines ranging from a minimum capacity of 100W to a maximum of 600W.



SPECIFICATIONS:

  • Battery voltage: 24V
  • Minimum wind generator capacity: 100W
  • Maximum wind generator capacity: 600W
  • Wind generator braking voltage: 30V
  • Wind generator recovery voltage: 27V
  • Display mode: LED
  • Ambient temperature: -35~+75℃
  • Dimensions: 100 x 87 x 28 mm
  • Weight: 400g
  • Quiescent current: ≤15 mA
  • IP protection level: IP67



INSTALLATION:

The following documents are available to download:

User manual for 600W 24V Waterproof wind charge controller FW06-24
